Leírás és Paraméterek
Model

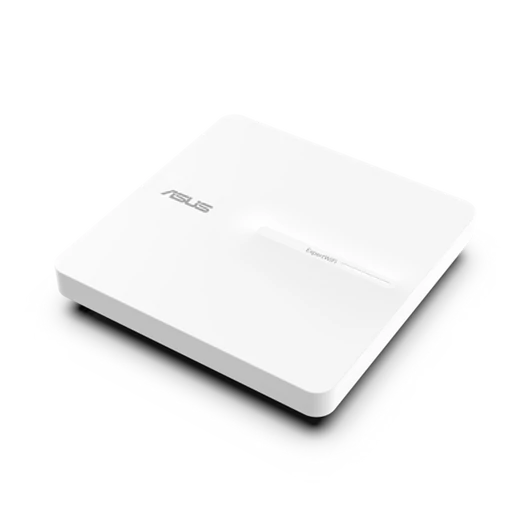

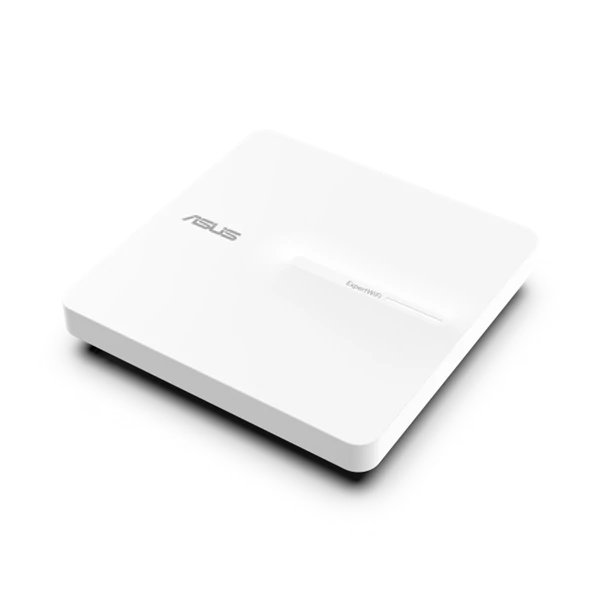

ASUS ExpertWiFi EBA63
Model Name
EBA63
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
Internal antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
Processor
1.7 GHz quad-core processor
Memory
256 MB Flash
512 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
10/100/1000 Gigabit Ethernet Port (support PoE) x 1
Buttons
Reset Button
LED Indicator
Power x 2
Power Supply
802.3af PoE
12 V with max. 1.5 A current DC (power adapter included)
Power Consumption
US: 10.0W
EU: 9.1W
Mounting
Wall Mount
Ceiling Mount
Package Content
ExpertWiFi EBA63
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Wall-mount kit
Product Weight (g)
426g
Product Dimentions
160x160x42
AiMesh
AiMesh
• AiMesh Node
Device Access Control
Time Scheduling
Reward
Customized Internet Schedule
• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12
Dashboard
Dashboard
Self-Defined Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
------------------------------------------------------------------------
Self-Defined Network Type
• Employee
• Guest Network
• Scheduled Network
• Maximum Self-Defined Network Rule :16
VLAN
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
AP isolate
Security
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Traffic Control
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
User Interface
WEB: ASUSWRT
APP: ASUS ExpertWiFi APP
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
