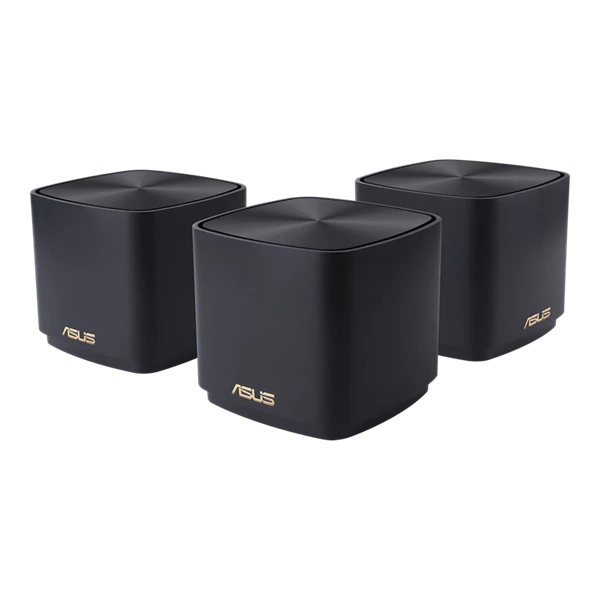

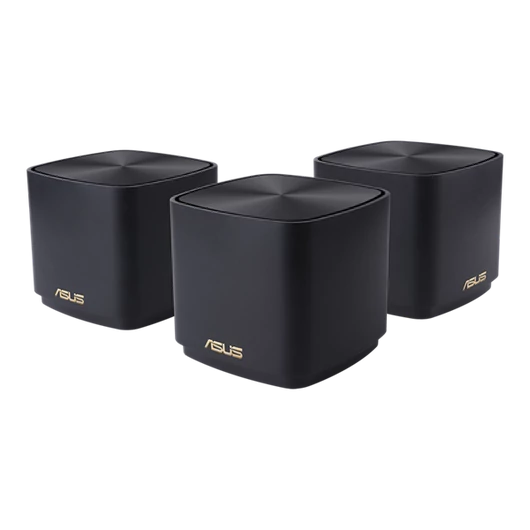

ASUS Wireless ZenWifi Mini Mesh Networking system AX1800, XD4 3-PK BLACK

XD4 (W-1-PK)
XD4 (B-3-PK)
XD4 (B-1-PK)
XD4 (W-3-PK)
XD4 (B-2-PK)
XD4 (W-2-PK)

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

Yes

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 1201 Mbps

Internal dual-band antenna x 2

MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2

256 MB Flash, 256 MB RAM

MIMO technology

2.4 G Hz / 5 GHz

RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

WPS Button, Reset Button

Power x 1

"AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current"

?Router (XD4R)
?RJ45 Ethernet cable
?Power adapter
?Quick start guide
?Warranty Card
?Router (XD4R)
?Node (XD4N)
?RJ45 Ethernet cable
?Power adapter
?Quick start guide
?Warranty Card

295 g

3-pack router*1+node*2
2-pack router*1+node*1
1-pack router*1
Content may vary in different regions and packages.

AiMesh:Yes
Primary AiMesh router:Yes
AiMesh node:Yes

ASUS Router APP:Yes

Game Boost/acceleration:No
WTFast:No

Support Alexa skill:Yes

Support IFTTT:Yes

AiProtection:AiProtection Classic
Router Security Assessment:No
Malicious site blocking:Yes
Two-Way IPS:No
Infected Device Prevention and Blocking:Yes

Parental Control:Yes
Parental Control Customized Internet schedule:Yes

Adaptive QoS:No
Bandwidth Monitor:Yes
Bandwidth limiter:Yes
Traditional QoS:Yes
Maximum Traditional QoS rule:32
Traffic Monitor:No
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:No
Website history:Yes

IPv6:Yes
MU-MIMO:Yes
Wi-Fi Encryption:WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
Wi-Fi Encryption:WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS support
UTF-8 SSID:Yes
Guest Network:Yes
Maximum Guest Network rule:9
Guest Network Connection time limit:Yes
WPS:Yes
Wi-Fi MAC address filter:No
Wireless scheduler:No
Airtime fairness:No
RADIUS Server:No
Universal beamforming:No
Explicit beamforming:No

Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN:No
WAN Aggregation:No
3G/4G LTE dongle:No
Android tethering:Yes
Port forwarding:Yes
Port triggering:Yes
DMZ:Yes
DDNS:Yes
NAT Passthrough:Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Let's Encrypt:No

DHCP Server:Yes
IGMP snooping:Yes
IPTV:Yes
LAN Link Aggregation:No
Manually assign IP address:Yes
Maximum manually assign IP address rule:64

VPN Client L2PT:Yes
VPN Client OVPN:Yes
VPN Client PPTP:Yes
VPN Server IPSec:Yes
VPN Server OVPN:Yes
VPN Server PPTP:Yes
VPN Fusion:No

HDD hibernation:No
Safely Remove disk:No
AiCloud:No
Download master:No
AiDisk:No
Media Server:No
Time Machine:No
Samba Server:No
FTP Server:No
Shared Folder privileges:No

Operating system:ASUSWRT
Free OS upgrade:Yes
Firewall:Yes
Maximum Firewall keyword filter:64
Maximum Firewall network service filter:32
Maximum Firewall URL filter:64
Wake on LAN (WOL):Yes
SSH:Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
