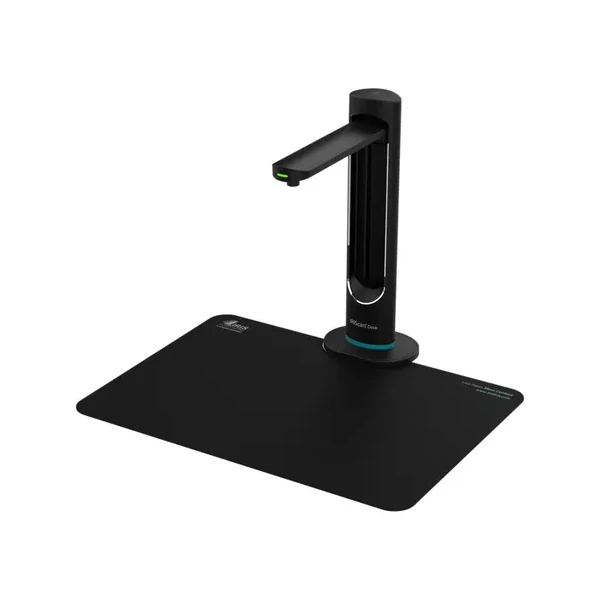

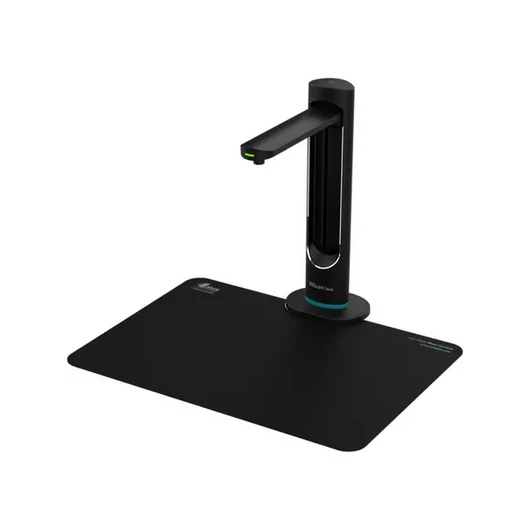

| Canon IRIScan Desk 6 Business |
| |
| |
|
|
| |
| Scanner specifications |
| |
| IRIScan Desk 6 |
| |
- Scanning technology: 8.0-Megapixel CMOS Sensor – 12 MP extrapolated
-
Max resolution: 3264 x 2448 pixels
-
Max document size: 297 x 210 mm (A4) or 10.98 x 8.5 in (letter size)
-
Scanning speed: Less than 1 sec scan per A4/letter size in color mode
-
Lens fixed focus
-
Video Record Resolution: 2048 x 1536 (3 MP) / 1920 x 1080 (Full HD 1080) / 1600 x 1200 (UXGA) / 1280x960 (960P)
-
Built-in LED Lights 4 pcs
-
Output resolution 300 DPI
-
Output level Color / Black & White / Grayscale
-
Interface/drivers USB 2.0 Type B x 1 (For PC Connection)
-
USB 2.0 Type-A x 1 (For USB Extension)
-
Power supply 5V by USB powered
-
Output formats Document: JPG, PDF (Image), PDF (Searchable), PDF (Text), Word, Txt, Excel, EPUB (E-book), MP3, WAV.
-
Daily scanning volume: up to 5000 pages
.
|
| IRIScan Desk 6 Pro |
| |
- Scanning technology: 13-Megapixel CMOS Sensor – 21 MB extrapolated
-
Max resolution: 4160 x 3120 pixels (13MP)
-
Max document size: 420 x 297 mm (A3) or 16.5 x 11.6 in.
-
Scanning speed: Less than 1 second scan per A3 page in color mode
-
Lens fixed focus
-
Video Record Resolution: 2048 x 1536 (3 MP) / 1920 x 1080 (Full HD 1080) / 1600 x 1200 (UXGA) / 1280x960 (960P)
-
Built-in LED Lights 4 pcs
-
Output resolution 300 DPI
-
Output level Color / Black & White / Grayscale
-
Interface/drivers USB 2.0 Type B x 1 (For PC Connection)
-
USB 2.0 Type-A x 1 (For USB Extension)
-
Power supply 5V by USB powered
-
Power supply 5V by USB powered
-
Output formats Document: JPG, PDF (Image), PDF (Searchable), PDF (Text), Word, Txt, Excel, EPUB (E-book), MP3, WAV.
-
Daily scanning volume: up to 5000 pages
.
|
| IRIScan Desk 6 Business |
| |
- Scanning technology: x 16 Megapixels - 2 x CMOS Sensor – 32 MP extrapolation
-
Max resolution: 4608 x 3456 pixels
-
Max document size: 420 x 297 mm (A3) or 16.5 x 11.6 in.
-
Scanning speed: Less than 1 second scan per A3 page in color mode
-
Dual Lens Fixed focus
-
Video Record Resolution: 2048 x 1536 (3MP) / 1920 x 1080 (Full HD 1080) / 1600 x 1200 (UXGA) / 1280 x 960 (960P)
-
Built-in LED Lights 6 pcs
-
Output resolution 300 DPI
-
Output level Color / Black & White / Grayscale
-
Interface/drivers USB 2.0 High Speed
-
Power supply 5V / 2A by DC-IN adapter
-
Output formats Document: JPG, PDF (Image), PDF (Searchable), PDF (Text), Word, Txt, Excel, EPUB (E-book), MP3, WAV.
-
Daily scanning volume: up to 5000 pages
.
|
| |
| |
| Minimum computer requirements |
| |
- Windows® 10 with Intel i3 or higher
-
Mac® OS 10.15 and above with Intel chip or M1 chip
-
Graphical Card: Intel® Standard Graphics or higher Graphics cards with 2 GB VRAM
-
Ram memory: 4 GB
-
Hard disk space: 2 GB
-
One USB 2.0 or above
.
|
| |
| |
| Box content |
| |
| IRIScan Desk 6 |
| |
- Camera Scanner • USB Cable • Scan Pad • Getting Started Guide
.
|
| IRIScan Desk 6 Pro |
| |
- Camera Scanner • USB cable • ScanPad • Getting started guide • External USB capture button
.
|
| IRIScan Desk 6 Business |
| |
- Camera Scanner • USB Cable • Scan Pad • Getting Started Guide • External USB capture foot pedal button • External USB capture hand button • AC power adapter
.
|
| * External scan button and/or pedal button are only available on Desk 5 Pro, Desk 6 Pro & Desk 6 Business |
| |
| |
| |
| Quick reference guide |
| |
| Product name: IRIScan Desk 6 |
| |
- SKU: 462005
-
Box Size: (H x L x D) 13 x 38 x 15 cm / 5.1 x 14.96 x 5.9 in.
-
Box Weight: around 1,37 kg / 3.02 lbs
-
Folded size: 321 x 120 x 90 mm / 12.6 x 4.72 x 3.54 In.
-
Working size (H x L x D): 321 x 120 x 238 mm / 12.6 x 4.72 x 9.37 In.
-
Weight 1,05 kg / 2.31 lbs
.
|
| Product name: IRIScan Desk 6 Pro |
| |
- SKU: 462006
-
Box Size: (H x L x D) 13 x 49 x 15 cm / 5.1 x 19.3 x 5.9 in.
-
Box Weight: around 1.47 kg / 3.24 lbs
-
Folded size: 396 x 120 x 90 mm / (15.5 x 4.72 x 3.54 In.)
-
Working size (H x L x D): 396 x 120 x 282 mm / (15.5 x 4.72 x 11.1 In.)
-
Weight : 1.15kg / 2.53 lbs
.
|
| Product name: IRIScan Desk 6 Business |
| |
- SKU: 462496
-
Box Size: (H x L x D) 14 x 40 x 14 cm / 5.5 x 15.74 x 5.5 in
-
Box Weight: around 1,37 kg / 3.02 lbs
-
Folded size: 110 x 150 x 402 mm / 4.3 x 5.9 x 15.8 In.)
-
Working size: 307 x 150 x 402 mm / 12 x 5.9 x 15.8 In.)
-
Weight: 1,2 kg / 2.65 lbs
.
|
| |
