| DJI Ronin 4D-6K |
| |
| |

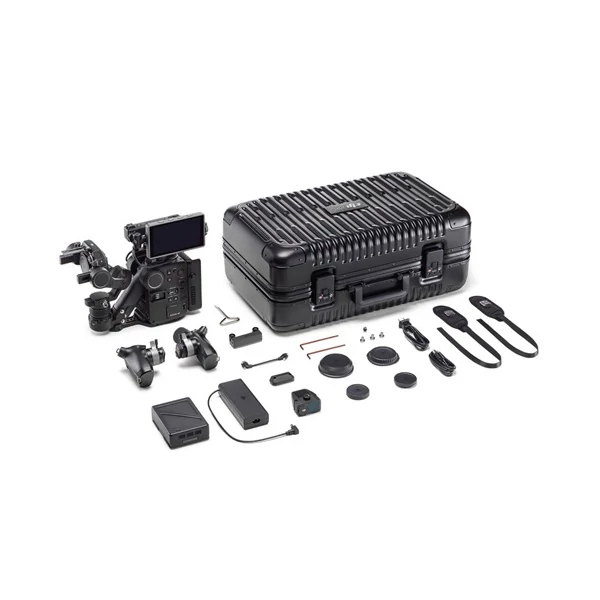

| In the Box |
| |
- Zenmuse X9-6K Gimbal Camera x1
-
Main Body x1
-
LiDAR Range Finder x1
-
DL Mount x1
-
Left Hand Grip x1
-
Right Hand Grip x1
-
Top Handle x1
-
High-Bright Main Monitor x1
-
TB50 Battery Mount x1
-
Power Adapter x1
-
TB50 Charging Adapter x1
-
AC Power Cable x8
-
USB-A to USB-C Cable x1
-
Base Plate x1
-
Hand Grip Extended Control Sticks x1
-
3mm Ball-End Hex Key x1
-
1.5mm Ball-End Hex Key x1
-
10mm 1/4"-20 Screw x3
-
Flat Head Screwdriver x1
-
DL Mount Body Cap x1
-
X9 Gimbal Base Cap x1
-
DX Mount Body Cap x1
-
DX Mount Lens Cap x1
-
Ronin 4D Gimbal Base Cap x1
-
TB50 Intelligent Battery x1
-
LiDAR Range Finder/Focus Motor Cable x1
-
Left Hand Grip Strap x1
-
Right Hand Grip Strap x1
-
Ronin 4D Carrying Case x1
-
X9 Counterweight (106 g) x1
.
|
| |
| |
| Specs |
| |
| General |
| |
- Main Body Dimensions (length×width×height): 235×115×160 mm
-
Overall Dimensions (length×width×height): 309×290×277 mm [1]
-
Gimbal Weight: Approx. 1.04 kg
-
Main Body Weight: Approx. 1.45 kg
-
Overall Weight: Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)
-
Max Operating Time: Approx. 150 minutes [2]
-
Intelligent Features: ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
-
Storage Temperature: -20° to 60° C (-4° to 140° F)
-
Operating Temperature: -10° to 40° C (14° to 104° F)
.
|
| |
| |
| Camera |
| |
- Sensor Size: 35mm full-frame CMOS image sensor
-
Base Lens Mount: DX Mount, and support for other mount units
-
Supported Lens Mounts: DL Mount (standard), L Mount, M Mount, and E Mount
-
DL Lens:
DJI DL 24 mm F2.8 LS ASPH
DJI DL 35 mm F2.8 LS ASPH
DJI DL 50 mm F2.8 LS ASPH
DJI DL PZ 17-28 mm T3.0 ASPH
-
Dynamic Range: 14+ stops
-
White Balance: Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
-
Gamma: D-Log, Rec.709, HLG
-
EI Range:
X9-8K: EI 200-12800, Dual Native ISO 800/4000
X9-6K: EI 200-12800, Dual Native ISO 800/5000
-
Shutter Speed: Electronic Rolling Shutter 1/24s-1/8000s
-
ND:
Built-in 9-stop ND filters:
Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
-
Focus Control [3]: Autofocus, Manual Focus, Automated Manual Focus
-
Supported File System: exFAT
-
Recording Format:
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 4444 XQ
Apple ProRes 422 HQ/Apple ProRes 422 [4]/Apple ProRes 422 LT
H.264 (4:2:0 10-bit)
View detailed list
-
Storage Media: DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
-
DJI PROSSD 1TB Recording Format: No restriction on recording format
-
CFexpress 2.0 Type B Recording Format [5]:
ProRes 422 HQ/LT:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
-
USB-C SSD Recording Format [6]:
ProRes 422 HQ/LT:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
-
Built-in Mic: Built-in 2-ch stereo
-
Audio Format: LPCM 2-ch, 24-bit 48kHz
.
|
| |
| |
| Gimbal |
| |
- Mechanical Range:
Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-Axis Range: approx 130mm [7]
-
Controllable Range:
Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°
-
Max Control Speed (°/s):
DJI Master Wheels or DJI Force Pro:
Tilt: 360°/s
Roll: 360°/s
Pan: 360°/s
Ronin 4D Hand Grips:
Tilt: 120°/s
Roll: 120°/s
Pan: 120°/s
-
Maximum Z-Axis Payload: 2000 g (including 1040 g gimbal)
-
Angular Vibration Range: ±0.01°
.
|
| |
| |
| LiDAR Range Finder |
| |
- Weight: 88 g
-
Dimensions (length×width×height): 71×47×34 mm
-
Operating Temperature: -10° to 40° C (14° to 104° F)
-
LiDAR Range Measurement Precision:
0.3-1m (±1%)
1-10m (±1.5%)
-
FOV:
30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)
30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)
-
Safety Rating: Class 1 (IEC 60825-1:2014) (safe for human eyes)
-
Operating Environment:
Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.
-
Laser Wavelength: 940 nm
-
Single Pulse Width: Two kinds of pulses emit in circulation: 5ns and 33.4ns.
-
Max Laser Power: 6 W
.
|
| |
| |
| Main Monitor |
| |
- Screen Size: 5.5 inches (diagonal)
-
Resolution: 1920×1080
-
Refresh Rate: 60 Hz
-
Max Brightness: 1000 cd/m2
-
Screen: Rotational LCD touchscreen
.
|
| |
| |
| Battery |
| |
- Battery Type: TB50 Intelligent Battery
-
Capacity: 4280 mAh
-
Energy: 97.58 Wh
-
Voltage: 22.8 V
-
Max Charging Voltage: 26.1 V
-
Max Charging Power: 180 W
-
Charging Temperature Range: 5° to 40° C (41° to 104° F)
-
Charging Time: Approx. 1.5 hours (with standard 86W power adapter)
.
|
| |
| |
| DJI O3 Pro Video Transmission |
| |
- Max Transmission Distance: 20,000 ft (approx. 6km, FCC-compliant) [8]
-
Max Transmission Resolution and Frame Rate: 1920×1080 @60fps
-
Minimum End-to-End Latency: 100 ms or 68 ms [9]
-
Wireless Frequency:
Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band: [10]
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
-
Transmitter Power (EIRP):
2.400-2.4835 GHz:
<33 dBm (FCC); <20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz
<23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz:
<30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC); <23 dBm (CE/MIC)
5.725-5.850 GHz:
<33 dBm (FCC/SRRC); <14 dBm (CE)
-
Max Bandwidth: 40 MHz
-
Max Bitrate: 50 Mbps
.
|
| |
| |
| Interface |
| |
- Main Body:
3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack × 1
USB3.1 Type-C Data Port × 1
6-pin 1B DC-IN (DC 12-30 V) × 1
Battery Mount Power Port (female) × 1
4D Expansion Plate Data Port (female) × 1
High-Bright Main Monitor Port × 1
Hand Grips Port × 2
Top Handle Port × 1
HDMI Type-A Video Output Port × 1 [11]
-
X9 Gimbal: LiDAR Range Finder/ Focus Motor Port × 2
-
TB50 Battery Mount:
Battery Mount Power Port (male) × 1
TB50 Battery Port × 1
.
|
| |
| |
| 4D Video Transmitter |
| |
- Dimensions: 89×21×137 mm
-
4D Video Transmitter Port:
4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1
.
|
| |
| |
| Remote Monitor |
| |
- Dimensions: 216×58×166 mm (includes monitor cage)
-
Screen Size: 7 inches (diagonal)
-
Max Brightness: 1500 cd/m2
-
Screen Resolution: 1920×1200
-
Refresh Rate: 60 Hz
-
Max Battery Life: Approx. 2 hours [12]
-
Operating Temperature: 0° to 40° C (32° to 104° F)
-
Storage Temperature: -20° to 60° C (-4° to 140° F)
-
Power System: DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
-
Remote Monitor Port:
3.5mm Stereo Jack × 1
microSD Card Slot × 1
HDMI Type-A Video Input Port × 1 [13]
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
-
Remote Monitor Expansion Port:
Remote Monitor Expansion High-Speed Port (male) × 1
HDMI 1.4 Type-A Video Output Port × 1
6-pin 1B DC-IN (DC 6.8-17.6 V) × 1
3G-SDI (Level A) BNC Video Output Port × 1
.
|
| |
| |
| Flex |
| |
- Extension Cable Length: 2 m
-
Weight: Approx. 725 g (including Ronin 4D Hand Grip Adapter and Hand Grips Adapter Cable)
-
Supported Accessories:
Ronin 4D Hand Grips
High-Bright Main Monitor
LiDAR Range Finder
Zenmuse X9 Focus Motor
.
|
| |
| |
| DL PZ 17-28 mm T3.0 ASPH Lens |
| |
- Imager Size: Full frame (36×24 mm)
-
Focal Length: 17-28 mm
-
MOD (From Object to Image Plane):
17 mm: 0.19 m
28 mm: 0.26 m
-
Aperture Range: T3.0 to T22
-
Filter Diameter: 67 mm
-
Elements/Groups: 13/11
-
External Dimensions (zoom motor excluded):
78 mm (max) × L 100.1 mm (to mount, hood excluded)
78 mm (max) × L 117.2 mm (to mount, hood included)
-
Lens Mount: DL mount
-
Weight (lens hood included): Approx. 520 g
-
Operating Temperature: -10° to 55° C (14° to 131° F)
-
Storage Temperature: 10° to 35° C (50° to 95° F)
-
Storage Humidity: 45%-75%
.
|
| |
| |
| Notes |
| |
1. Measured when 6K Combo is fully set up with the main monitor attached and the Z-Axis off.
2. Measured with a fully charged TB50 Battery and Ronin 4D in a still state with the gimbal balanced, the Z-Axis inactive, and continuously recording in RAW. Gimbal movements or use of the Z-Axis will reduce operating time.
3. Autofocus on manual lenses requires DJI Zenmuse X9 Focus Motor.
4. Supported through a future firmware update.
5. Please use recommended CFexpress cards.
6. Please use recommended USB-C SSD.
7. Stabilization range of the Z-Axis is subject to change based on Z-Axis modes and usage scenarios and may be smaller than the mechanical range.
8. Unobstructed, free of interference.
9. 100ms is measured at 4K/24fps, 68ms is measured at 4K/60fps.
10. Some frequency bands may not be available depending on the legal policies of the region the monitor was activated in.
11. Supports HDMI 2.0.
12. Measured at 50% screen brightness with DJI WB37 battery.
13. Supports HDMI 1.4.
