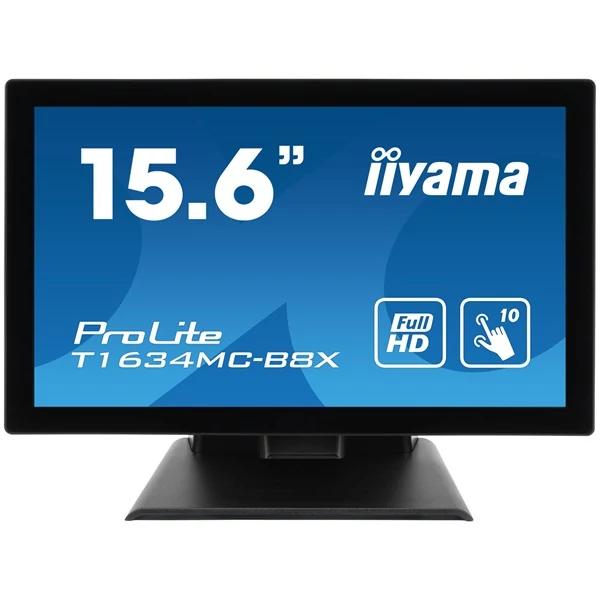

| PROLITE T1634MC-B8X | |
| 15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function | |
|
The ProLite T1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
|
|
| TECHNICAL SPECIFICATION | |
|
DISPLAY CHARACTERISTICS
|
|
| Design
|
Edge to edge glass
|
| Diagonal
|
15.6", 39.5cm
|
| Panel
|
IPS Panel Technology LED
|
| Native resolution
|
1920 x 1080 @60Hz (2.1 megapixel)
|
| Aspect ratio
|
16:9
|
| Panel brightness
|
450 cd/m²
|
| Brightness
|
405 cd/m² with touch
|
| Light transmittance
|
90%
|
| Static contrast
|
700:1 with touch
|
| Response time (GTG)
|
25ms
|
| Viewing zone
|
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
|
| Colour support
|
16.2mln (6bit + Hi-FRC)
|
| Horizontal Sync
|
30 - 84kHz
|
| Viewable area W x H
|
344.2 x 193.6mm, 13.6 x 7.6"
|
| Pixel pitch
|
0.179mm
|
| Bezel colour and finish
|
black, matte
|
|
TOUCH
|
|
| Touch technology
|
projective capacitive
|
| Touch points
|
10 (HID, only with supported OS)
|
| Touch method
|
stylus, finger, glove (latex)
|
| Touch interface
|
USB
|
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
| Through-Glass
|
6mm
|
| Palm rejection
|
yes
|
|
INTERFACES / CONNECTORS / CONTROLS
|
|
| Analog signal input
|
VGA x1
|
| Digital signal input | HDMI x1 |
| .
|
DisplayPort x1
|
| HDCP
|
yes
|
|
FEATURES
|
|
| Extra
|
Anti-fingerprint coating, touch through-glass
|
| Glass thickness
|
2.4mm
|
| Glass hardness
|
7H
|
| Water and dust protection
|
IP65 (front)
|
| OSD key lock
|
yes
|
|
GENERAL
|
|
| OSD languages
|
EN, DE, FR, ES, IT, CN, JP
|
| Control buttons
|
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
|
| User controls |
picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
|
| Plug&Play
|
DDC2B
|
|
MECHANICAL
|
|
| Orientation
|
landscape, face-up
|
| Tilt angle
|
90° up; 5° down
|
| VESA mounting
|
100 x 100mm
|
|
ACCESSORIES INCLUDED
|
|
| Cables
|
power, USB, HDMI, DP
|
| Guides
|
quick start guide, safety guide
|
| Other
|
AC adapter
|
|
POWER MANAGEMENT
|
|
| Power supply unit
|
external
|
| Power supply
|
DC 12 V
|
| Power usage
|
18W typical, 1.5W stand by, 0.3W off mode
|
|
SUSTAINABILITY
|
|
| Regulations
|
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
|
| Energy efficiency class (Regulation (EU) 2017/1369)
|
F
|
| REACH SVHC
|
above 0.1%: Lead
|
|
DIMENSIONS / WEIGHT
|
|
| Product dimensions W x H x D
|
381 x 315.5 x 253.5mm
|
| Box dimensions W x H x D
|
455 x 365 x 290mm
|
| Pallet volume
|
48pcs
|
| Pallet dimensions W x H x D
|
970 x 2070 x 1140mm
|
| Weight (without box)
|
3.9kg
|
| Weight (with box)
|
5.8kg
|
| EAN code
|
4948570118335
|
|
RELATED INFORMATION
|
|
| Related products
|
RC TOUCHV01
|
