- Wireless Standards
-
IEEE 802.11a/b/g/n 2.4 GHz
- Frequency
-
2.4 GHz
- Reception Sensitivity
-
11b 11Mbps: -87.5dBm
11g 54Mbps: -74dBm
11n HT20 MCS7: -71dBm
11n HT40 MCS7: -69dBm - Transmission Power
-
<20dBm
- Wireless Security
-
Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
- Wireless
- Dimensions
-
111*70*23.8 mm
- Interfaces
-
1 micro USB port for power supply
1 Nano SIM card slot - Button
-
Power Button, Reset Button
- External Power Supply
-
5V/1A
- Antenna Type
-
Internal Antennas
- Data Rates
-
4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps
WiFi Speed: 150 Mbps on 2.4 GHz
- LED
-
Wi-Fi LED, Internet LED, Battery LED
- Network Type
-
Support4G/3G network
FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 ΜHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)
- Hardware
- DHCP
-
Server, Client, DHCP Client List
- Software
- Package Contents
-

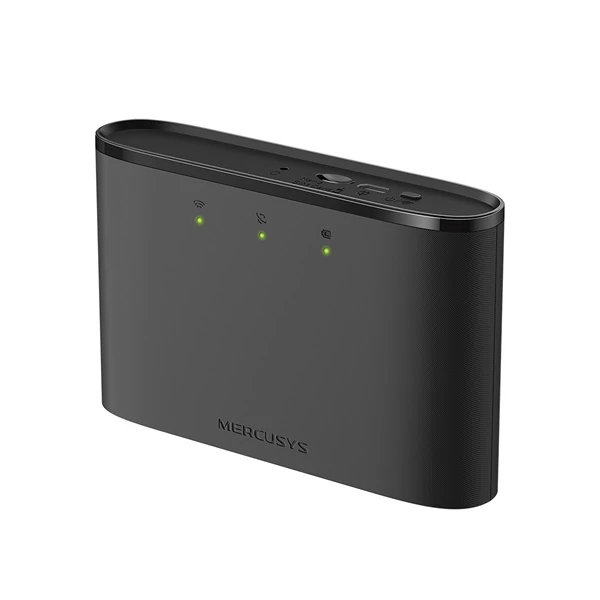

Mobile Wi-Fi MT110
Micro USB Cable
Quick Installation Guide - Environment
-
Operating Temperature: 0°C~35°C (32°F ~95°F)
Storage Temperature: -10°C~40°C (14°F ~104°F)
Operating Humidity: 0%~75% non-condensing
Storage Humidity: 0%~65% non-condensing - System Requirements
-
Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
- Others
