Leírás és Paraméterek
- Dimensions
-
171*98*27 mm
- PoE Ports
-
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W - Interfaces
-
10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
-
External Power Adapter (Output: 53.5V/1.31A)
- Installation
-
Desktop
Wall Mount
- Standards and Protocols
-
IEEE 802.3x Flow Control
- Data Rates
-
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex - Jumbo Frame
-
2 KB
- Mac Address Table
-
2K
- Max Power Consumption
-
2.96W(220 V / 50 Hz, no PD connected)
77.52W(220 V / 50 Hz, with 65W PD connected)
- Max Power Consumption
-
10.064 BTH/h (no PD connected)
263.568 BTH/h(with 65W PD connected)
- Hardware
- Package Contents
-

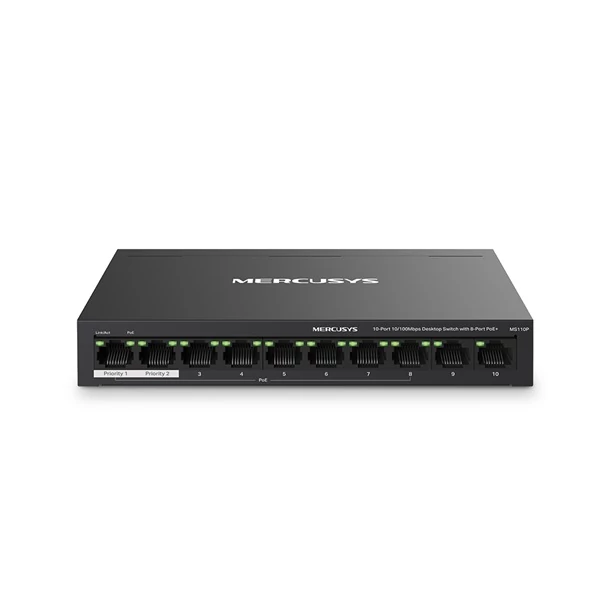

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide - Environment
-
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
- Others
