| Antenna Type |
External |
|---|---|
| Dimensions (W X D X H) |
4.46 × 2.51 × 0.85 in. (without antennas) 4.46 × 3.96 × 7.92 in. (with vertical antennas)
113.2 × 63.8 × 21.7 mm (without antennas) 113.2 × 100.5 × 201.1 mm(with vertical antennas) |
| Signal Rate |
11n: Up to 300 Mbps (Dynamic) 11g: Up to 54 Mbps (Dynamic) 11b: Up to 11 Mbps (Dynamic) |
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency |
2.400 - 2.4835 GHz |
| Reception Sensitivity |
300M: -68 dBm@10% PER 270M: -68 dBm@10% PER 144M: -71 dBm@10% PER 130M: -71 dBm@10% PER 54M: -74 dBm@10% PER 11M: -86 dBm@8% PER 6M: -90 dBm@10% PER 1M: -94 dBm@8% PER |
| Interfaces |
Micro USB 2.0 |
| Certifications |
CE, ROHS |
| Package Contents |

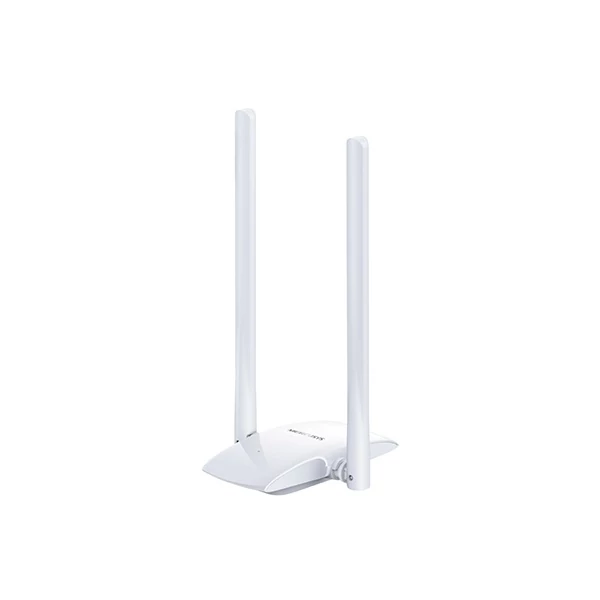

300 Mbps High Gain Wireless USB Adapter (MW300UH) Quick Installation Guide Resource CD USB Cable (Micro USB to USB A) |
| Environment |
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating humidity: 10% ~ 90% Non-Condensing Storage humidity: 5% ~ 90% Non-Condensing |
| Transmission Power |
≤20 dBm (EIRP) |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| System Requirements |
Windows 10/8.1/8/7/XP (32/64 bit) |
