Leírás és Paraméterek
- Wireless Standards
-
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
- Frequency
-
2.4 GHz - 2.5 GHz, 5 GHz
- WiFi Speeds
-
Up to 750 Mbps (433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
- Reception Sensitivity
-
5 GHz:
11AC VHT80 MCS9< -63dBm
2.4 GHz:
11N HT40 MCS7< -71dBm - Transmission Power
-
2.4 GHz: ≤30dBm; 5 GHz: band1&band4 ≤30dBm; band2&band3 ≤24dBm
- Wireless Security
-
WPA-PSK/WPA2-PSK
- Wireless
- Dimensions
-
112*84.7*39 mm
- Interfaces
-
10/100 Mbps RJ45 Port
- Button
-
RESET/WPS Button
- Power Consumption
-
7.2 W
- Hardware
- Certifications
-
NCC, RoHS
- Package Contents
-

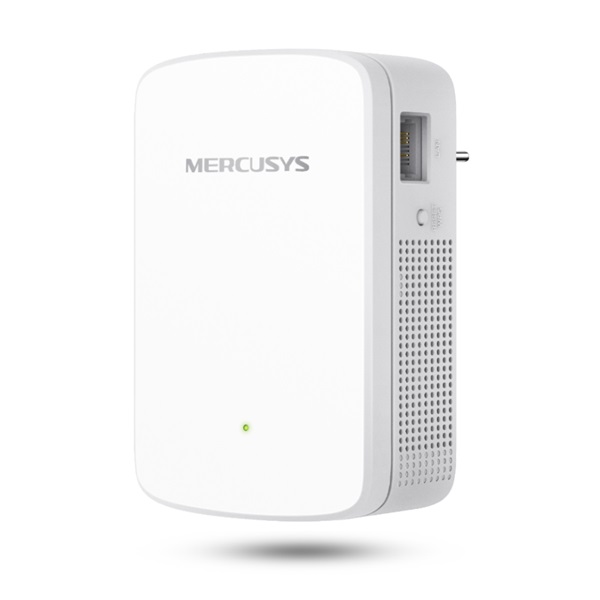

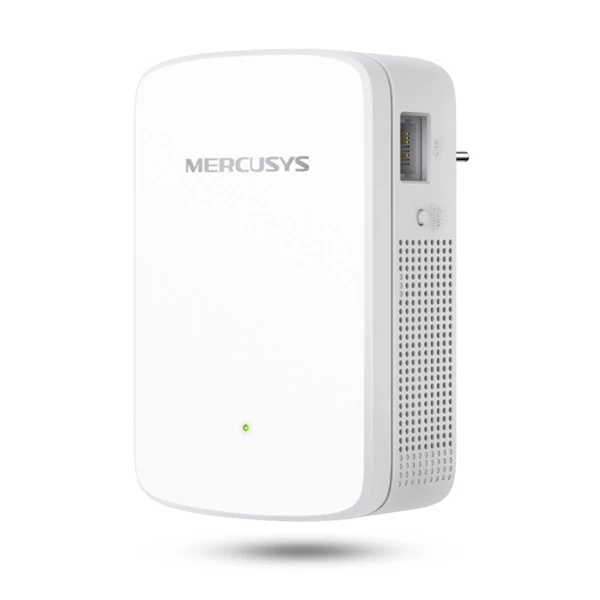

• Wi-Fi Range Extender (ME20)
• Quick Installation Guide - Environment
-
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
- Others
- Wireless Standards
-
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
- Frequency
-
2.4 - 2.5 GHz, 5 GHz
- WiFi Speeds
-
Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
- Reception Sensitivity
-
5 GHz:
11ac HT80 MCS9 < -63 dBm
2.4 GHz:
11n HT40 MCS7 < -70 dBm - Transmission Power
-
< 20 dBm
- Wireless Security
-
WPA-PSK/WPA2-PSK
- Wireless
- Dimensions
-
112 × 84.7 × 39 mm
- Interfaces
-
1× 10/100Mbps RJ45 Port
- Button
-
RESET/WPS Button
- Antenna Type
-
2× External Antennas
- Power Consumption
-
9.2 W
- Hardware
- Certifications
-
CE, RoHS
- Package Contents
-
• Wi-Fi Range Extender (ME30)
• Quick Installation Guide - Environment
-
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
- Others
