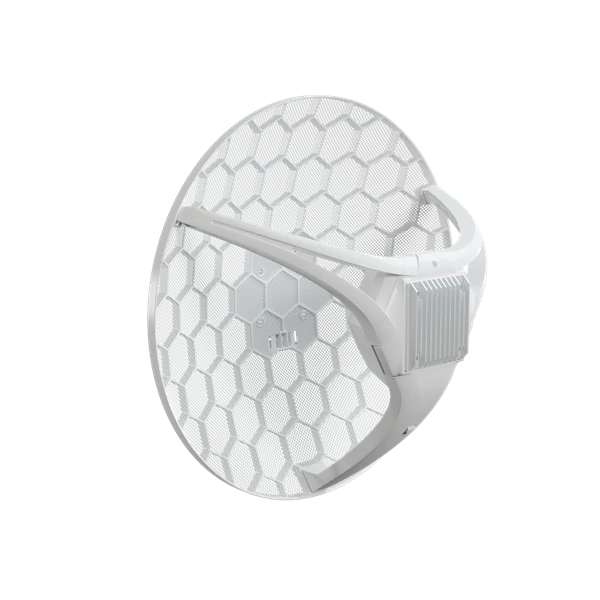

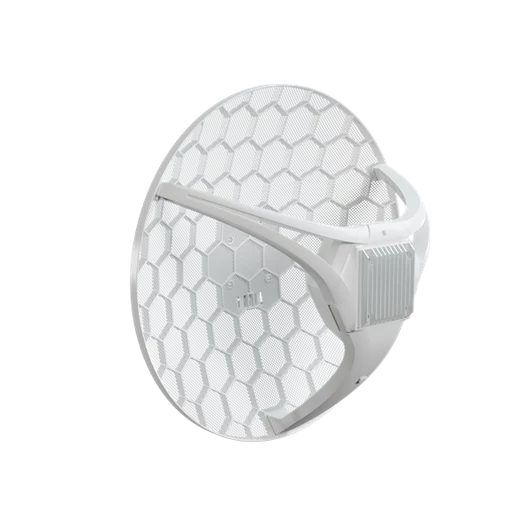

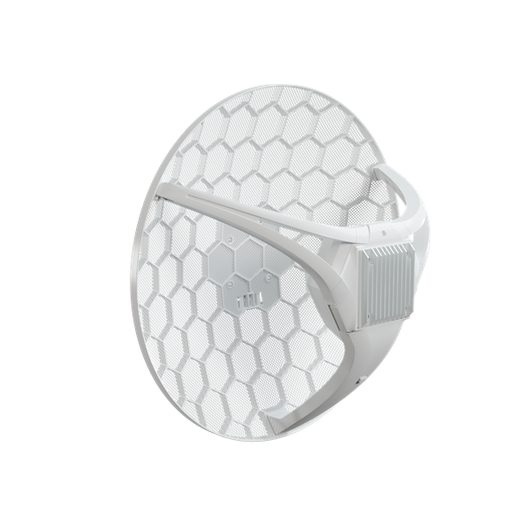

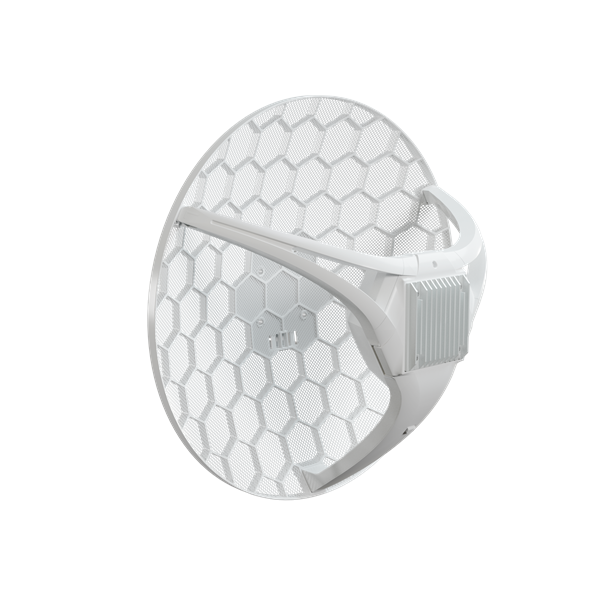

Like the previous LHG LTE models, this is a last mile-internet solution for situations when even your phone might not have any signal. The new LHG comes with a cutting-edge Category 18 LTE modem – for the fastest mobile internet no matter where you are. This kit supports speeds up to one Gbps! Due to its large high-gain 17 dBi antenna, LHG LTE18 kit can connect to cell towers in extreme rural locations where nothing else is available.
There is a massive heat sink, so you don’t have to worry about overheating. The grid antenna design can withstand harsh, windy weather. And it can be mounted in different ways, including poles and masts.
The LHG LTE18 kit features a 1.2 Gbps CAT18 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. If you’re competing for traffic in a place with poor connectivity, the new LHG will give you the upper hand. We have seen internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions
There’s a mighty high-gain antenna inside that supports a variety of LTE bands. It goes as high as 2.7 GHz. And it offers extensive low frequency coverage as well. Keep in mind that the device only supports 2x2 DL MIMO as the LHG has only 2 antenna ports. You’ll be using the Gigabit Ethernet port with PoE-in for powering from an ethernet switch. But we’ve included an injector as well. There’s a standard MicroSIM slot for LTE connectivity. And at the heart of this useful gadget, we have a powerful 64 bit dual-core ARM CPU.
So don’t wait for cable or satellite network providers to reach you – choose LHG LTE18 kit and always stay connected!
Details | |
---|---|
Product code | LHGGM&EG18-EA |
Architecture | ARM 64bit |
CPU | 88F3720 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 8 W |
Max power consumption without attachments | 8 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
Mobile
Details | |
---|---|
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
MIMO DL | 2x2 |
LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Micro SIM) |
Number of M.2 slots | 1 |
Other
Details | |
---|---|
Mode button | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 54 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
