Leírás és Paraméterek
Connector(s)
Connector A
1 - DisplayPort (20 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
5°C to 35°C (41°F to 95°F)
Storage Temperature
-25°C to 70°C (13°F to 149°F)
Humidity
-25°C to 85°C (77°F to 185°F) at 80% - 95%
Hardware
Active or Passive Adapter
Active
AV Input
DisplayPort - 1.4
Ports
1
AV Output
HDMI - 2.0
Audio
Yes
Industry Standards
DPCP (DisplayPort Content Protection)
HDCP 2.2 (High Definition Content Protection)
DisplayPort 1.4
HDMI 2.0
Chipset ID
Parade - PS176
Packaging Information
Package Height
1.3 cm [0.5 in]
Package Length
22.0 cm [8.7 in]
Shipping (Package) Weight
36.0 g [1.3 oz]
Package Width
19.5 cm [7.7 in]
Package Quantity
1
Performance
Audio Specifications
HDMI - 7.1 Channel Audio
Maximum Cable Distance To Display
7 m [23.0 ft]
Maximum Digital Resolutions
4K x 2K @ 60 Hz
Supported Resolutions
4k x 2K (Ultra HD) @ 60 Hz
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported
Yes
Physical Characteristics
Weight of Product
27.0 g [1.0 oz]
Color
Black
Material
Plastic
Cable Length
10.8 cm [4.2 in]
Product Length
15.8 cm [6.2 in]
Product Width
2.3 cm [0.9 in]
Product Height
1.2 cm [0.5 in]
Special Notes / Requirements
Note
This video adapter is not compatible with cables that use RedMere™ technology.
What's in the Box
Included in Package

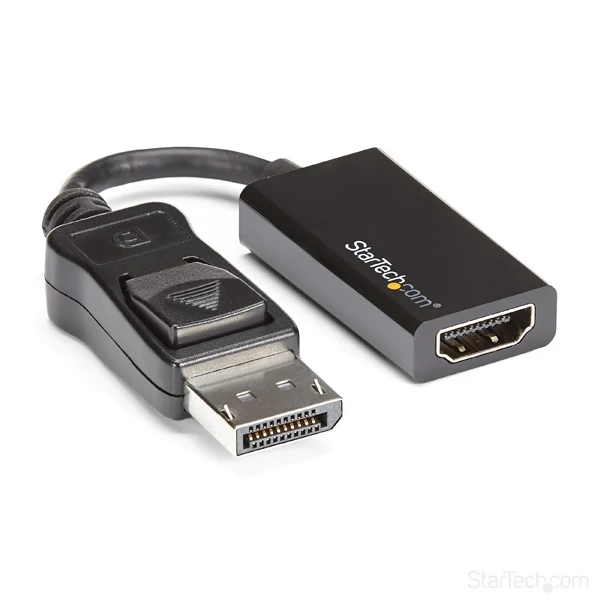

1 - DisplayPort to HDMI adapter
