Leírás és Paraméterek
Connector(s)
Connector A
1 - DisplayPort (20 pin)
Connector B
1 - Mini-DisplayPort (20 pin)
Environmental
Humidity
5%-80% RH (no condensation)
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Hardware
Number of Conductors
19
Connector Plating
Nickel
Cable Jacket Material
PVC - Polyvinyl Chloride
Fire Rating
CMG Rated (General Purpose)
Packaging Information
Package Height
0.1 mm [0.0 in]
Package Length
22.0 cm [8.7 in]
Shipping (Package) Weight
22.0 g [0.8 oz]
Package Width
20.0 cm [7.9 in]
Package Quantity
1
Physical Characteristics
Weight of Product
14.0 g [0.5 oz]
Product Height
1.4 cm [0.5 in]
Product Width
2.0 cm [0.8 in]
Color
Black
Wire Gauge
32 AWG
Max Connector Dimension
20 mm [0.8 in]
Cable Length
152.4 mm [6.0 in]
Cable OD
4.7 mm [0.2 in]
Product Length
15.0 cm [5.9 in]
What's in the Box
Included in Package

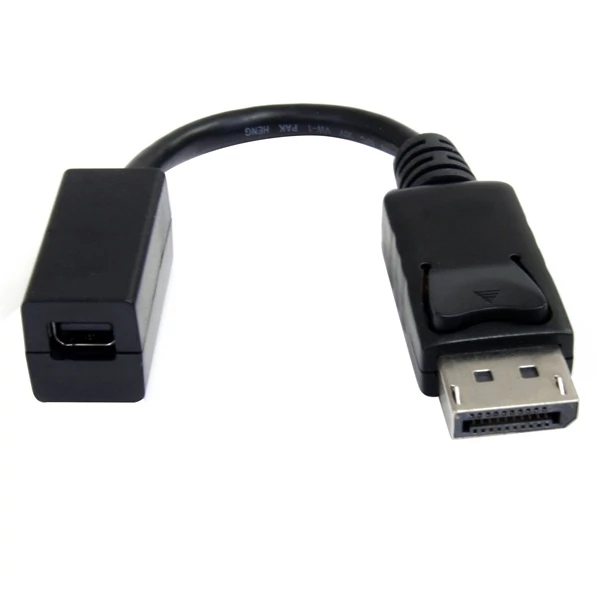

1 - 6in DisplayPort® to Mini DisplayPort Video Cable - M/F
