Leírás és Paraméterek
Connector(s)
Connector A
1 - HDMI (19 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-5°C to 40°C (23°F to 104°F)
Humidity
20°C to 80°C (68°F to 176°F)
Hardware
AV Input
HDMI
AV Output
HDMI
Cabling
HDMI
Audio
Yes
Rack-Mountable
No
Daisy-Chain
No
Indicators
LED Indicators
1 - Power LED
Packaging Information
Package Height
46 mm [1.8 in]
Package Length
15.8 cm [6.2 in]
Shipping (Package) Weight
0.2 kg [0.4 lb]
Package Width
10.2 cm [4.0 in]
Package Quantity
1
Performance
Maximum Cable Length
35 m [114.8 ft]
Max Distance
35 m / 115 ft
Maximum Digital Resolutions
At 10 m
Up to 4K at 60Hz
At 25 m
Up to 4K at 30Hz
At 35 m
Up to 1080p
Supported Resolutions
3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p)
Wide Screen Supported
Yes
Physical Characteristics
Color
Black
Product Length
56 mm [2.2 in]
Product Width
4.6 cm [1.8 in]
Product Height
1.5 cm [0.6 in]
Weight of Product
150 g [5.3 oz]
Power
Power Source
USB-Powered
Input Voltage
5V DC
Output Voltage
5 DC
What's in the Box
Included in Package

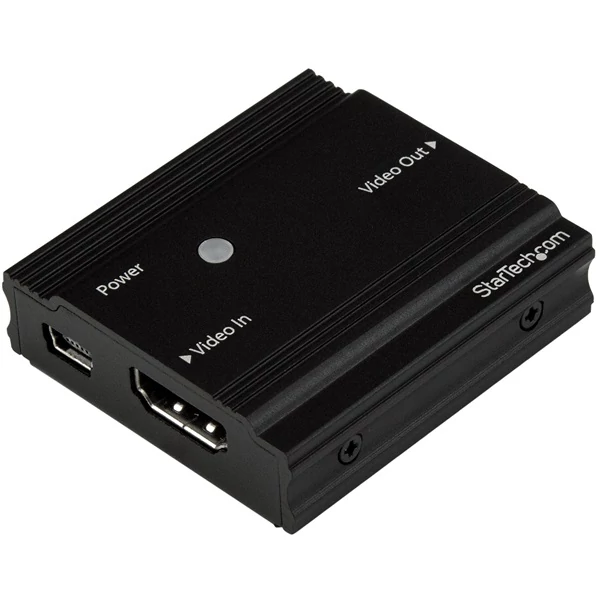

1 - HDMI signal booster
1 - 5 ft [1.5 m] USB power cable
