Leírás és Paraméterek
Connector(s)
Input Connector(s)
2 - HDMI
1 - USB Micro-B (5 pin) (Power)
Output Connectors
1 - HDMI
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Humidity
5~90% RH (non-condensing)
Hardware
AV Input
HDMI
Ports
2
AV Output
HDMI
Audio
Yes
Indicators
LED Indicators
1 - Power
2 - Port Selection
1 - Automatic Switching Indicator
1 - IR Mode Indicator
Packaging Information
Package Length
7.0 in [17.9 cm]
Package Width
4.8 in [12.3 cm]
Package Height
2.0 in [5.0 cm]
Shipping (Package) Weight
11.0 oz [312.0 g]
Package Quantity
1
Performance
Maximum Cable Distance To Display
16.4 ft [5 m]
Supported Resolutions
8K 60Hz
4K 144Hz
4K 120Hz
4K 60Hz
5120x1440 60Hz
3440x1440 60Hz
2560x1440 60Hz
2560x1080 60Hz
1920x1200 60Hz
1920x1080 60Hz
Other lower resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Physical Characteristics
Color
Black
Product Length
3.5 in [9.0 cm]
Product Width
1.7 in [4.4 cm]
Product Height
0.6 in [1.4 cm]
Weight of Product
3.1 oz [87.0 g]
Material
Metal
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.3A
Output Voltage
5V DC
Output Current
1A
Power Consumption (In Watts)
5W
Software
OS Compatibility
No Drivers or Software required
Special Notes / Requirements
Note
HDMI 2.1a cables are required for full functionality
What's in the Box
Included in Package

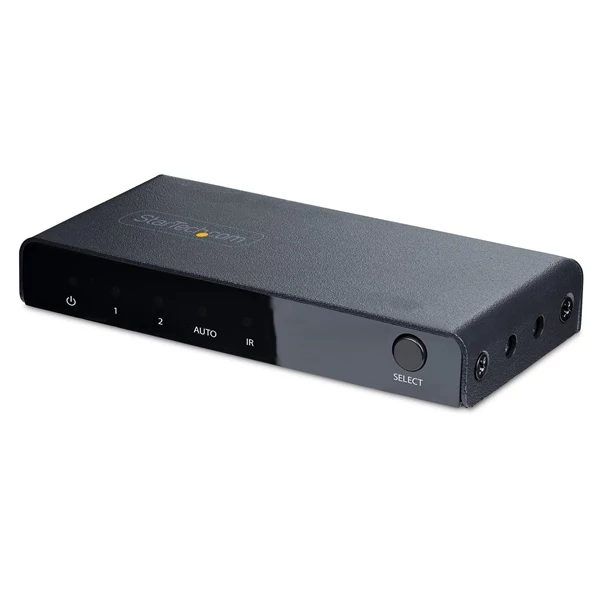

1 - HDMI Video Switch
1 - Remote Control (Batteries Not Included)
1 - Mounting Kit
1 - USB Wall Charger
1 - USB Micro-B Power Cable
4 - Rubber Feet
1 - Quick-Start Guide
