Interface	• 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate	14.88 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	20 Gbps
Dimensions ( W x D x H )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption	• 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation	• 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS

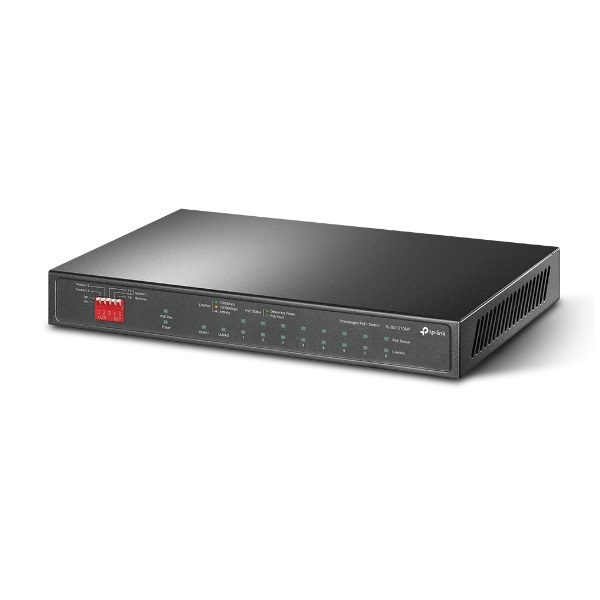

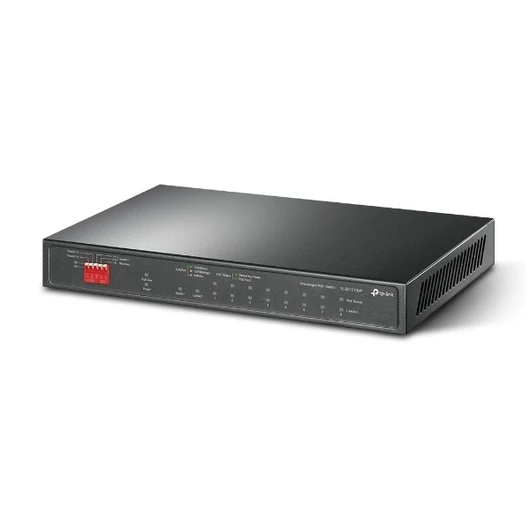

Package Contents	• TL-SG1210MP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
