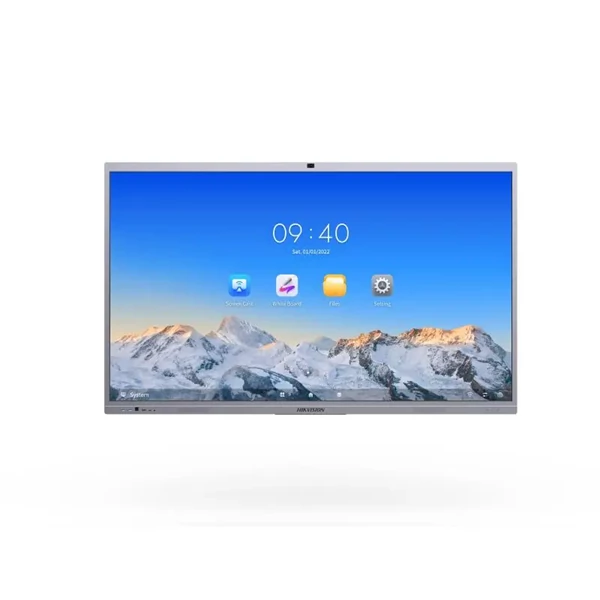

| 65-inch 4K Interactive Display |
| |
| |
- UHD 4K display with resolution of 3840 × 2160.
-
Anti-glare and anti-blocking design to ensure smooth interaction
-
Dual systems of Android and Windows(Optional) saving cost and easy to use, video conference software are recommonded to run under Windows system.
-
Quick response, at most 45-points touch control and smooth writing experience.
-
Built-in network switch chip saves a network switch.
-
All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
.
|
| |
| |
| Specification |
| |
| Product Model |
| |
- Product Model: DS-D5C65RB/B
.
|
| |
| |
| Panel |
| |
- Glass Thickness: 3.2 mm
-
Glass Bonding Method: Zero Lamination
.
|
| |
| |
| Display |
| |
- Screen Size: 65 inch
-
Backlight: DLED
-
Pixel Pitch: 0.124(H) × 0.372(V)mm
-
Resolution: 3840 × 2160 @60 Hz
-
Brightness: 400 cd/m² with Brightness sensor
-
Color Depth: 10bit
-
Contrast Ratio: 5000:1
-
Response Time: 6 ms
-
Color Gamut: 72% NTSC
-
Refresh Rate: 60 Hz
-
Viewing Angle: 178°(H)/178°(V)
.
|
| |
| |
| Optical |
| |
|
|
| |
| |
| Built-In System |
| |
- Operation System: Android 12.0
-
Processor: Quad-core Cortex-A76 × 4(2.4 GHz)and quad-core Cortex-A55 × 4(1.8 GHz)
-
Memory: 8 GB
-
Built-In Storage: 128 GB
-
Panel Type: VA
-
HDCP Version: 2.0
-
Touch Resolution: 32768 x 32768
.
|
| |
| |
| Touch |
| |
- Type: Infrared Touch Screen
-
Touch Point: 45 point multi-touch
-
Touch Response Time: < 8 ms
-
Touch Precision: ± 1 mm (≥ 90% touching area)
.
|
| |
| |
| Processing Performance |
| |
|
|
| |
| |
| Internal Function |
| |
- Loudspeaker: Built-in 2 ×15 W+25 W loudspeaker;
-
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
-
Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging;support shadow correction and distortion correction for lens.
-
Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
.
|
| |
| |
| Interface |
| |
- Video & Audio Input: HDMI In (HDMI 2.0)× 3, VGA In x 1, DP In (DP 1.2)× 1, Audio In × 1
-
Video & Audio Output: HDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out × 1
-
Control Interface: TOUCH-USB 3.0 × 3, RS232 × 1
-
Network Interface:
LAN (1000 Mbps) × 2
WIFI AP&Station,2.4G/5G
IEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
-
Data Transmission Interface: USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
.
|
| |
| |
| Power |
| |
- Standby Consumption: ≤ 0.5 W
-
Max. Consumption: < 200W
.
|
| |
| |
| Working Environment |
| |
- Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
-
Working Humidity: 10%~90% RH
.
|
| |
| |
| General |
| |
- VESA: 600 mm × 400 mm(4 × M8-25 mm)
-
Power Supply: 100 to 240 VAC, 50/60 Hz
-
Product Dimensions: 1491.9 mm × 910.6 mm × 82.3 mm
-
Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
-
Package Dimensions (W × H × D): 1704 mm ×251 mm ×1073 mm
-
Net Weight: 41.13 kg
-
Gross Weight: 53.27 kg
-
NFC: Support screen mirroring by Android phones.
.
|
| |
| |
| Camera |
| |
- Pixel: 8 MP (48MP for photos)
-
Camera Function: Support intelligent switching between Android system, OPS, and PC.
-
Field Angle: 120°(diagonal), 110°(horizontal), 75°(vertical)
-
Distortion: ≤2.5%
-
Camera Resolution Ratio: Up to 4K
.
|
| |
| |
| Microphone |
| |
- Specification: Omni-directional 8-array layout
-
Mic Function: Echo reduction and smart noise-cancellation
-
Voice Distance: 12 m
-
Sampling Rate: 32 K
-
Mic Sampling Rate: 16 bit
.
|
| |
