D-Link DGS-1210 Specificatins
DGS-1210-10P DGS-1210-28P DGS-1210-52MP
Number of Ports
8 10/100/1000 Mbps PoE
2 SFP

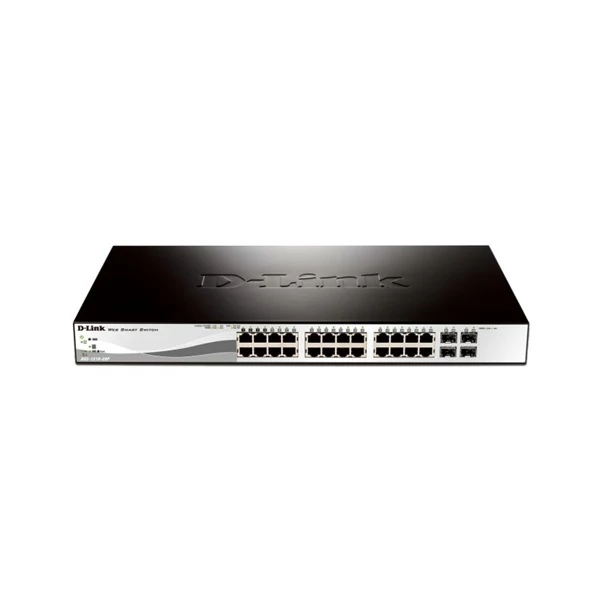

24 10/100/1000 Mbps PoE
4 SFP
48 10/100/1000 Mbps PoE
4 SFP
Port Standard & Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control for Full-Duplex Mode
IEEE 802.3af compliance
IEEE 802.3at compliance
Auto-negotiation
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
Full/half duplex for 10/100 Mbps speeds
Full duplex for Gigabit speed
Media Interface Exchange Auto or configurable MDI/MDIX
Switching Capacity 40 Gbps
56 Gbps
104 Gbps
Transmission Method Store-and-forward
MAC Address Table 16,000 entries per device
MAC Address Update
Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate 14.88 Mpps
41.7 Mpps
77.4 Mpps
Packet Buffer Memory 1.5 MB
1.5 MB
3.0 MB
PoE Standard IEEE 802.3af and IEEE 802.3at
PoE Capable Ports Ports 1 to 8: Up to 30 W
Ports 1 to 4: Up to 30 W
Ports 1 to 8: Up to 30 W
PoE Power Budget Max. 78 W
Max. 193 W
Max. 370 W
AC Input 100 to 240 VAC 50/60Hz internal power supply
Maximum Power Consumption 103.4 W (PoE on),
251.3 W (PoE on),
483.1 W (PoE on),
Standy Power Consumption 10.3 W/110 V, 11.1 W/240 V
24 W/110 V, 21.9 W/240 V
29.5 W/110 V, 27.5 W/240 V
Fan Quantity 0
Two smart fans
Three smart fans
Acoustics 0 dB(A)
Low speed: 47 dB(A)
Low speed: 40.4 dB(A)
Heat Dissipation 352.63 BTU/hr
840.89 BTU/hr
1648.23 BTU/hr
Operating Temperature 23 to 122 °F (-5 to 50 °C)
Storage Temperature -4 to 158 °F (-20 to 70°C)
Operating Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing
Dimensions (W x D x H) 11.02 x 7.08 x 1.73 inches (280 x 180 x 44 mm)
17.32 x 8.27 x 1.73 inches (440 x 210 x 44 mm)
17.32 x 16.9 x 1.73 inches (440 x 430 x 44 mm)
Weight 3.1 lbs (1.41 kg)
5.60 lbs (2.54 kg)
12.74 lbs (5.78 kg)
Diagnostic LEDs
Power (per device)
PoE Max (per Device)
Link/Activity/Speed (per 10/100/1000Base-T port)
Link/Activity/Speed (per SFP port)
Fan (per device)
Button to switch LED display mode between PoE and Link/Activity
MTBF 315,336 hours
239,236 hours
318,616 hours
Certifications
FCC Class A
CE Class A
ICES-003
VCCI Class A
C-Tick
BSMI
Safety
L2 Features
MAC Address Table
Flow Control
802.3x Flow Control
HOL Blocking Prevention
IGMP Snooping
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Loopback Detection
Spanning Tree Protocol
802.3ad Link Aggregetion
DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group
DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
Spanning Tree Protocol
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)
VLAN
802.1Q
VLAN Group
Max 256 static VLAN groups
Max 4094 VIDs
Management VLAN
Asymmetric VLAN
Auto Voice VLAN
Max. 10 user defined OUI
Max. 8 default OUI
Auto Surveillance VLAN
QoS (Quality of Service)
802.1p Quality of Service
8 Queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 64 Kb/s)
QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
L3 Features
IP Interface
IPv6 Neighbor Discovery (ND)
Access Control List
Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv6
Each rule can only be associated with a single port
ACL based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class
Security
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
802.1X Port-based Access Control
ARP Spoofing Prevention
Traffic Segmentation
SSH v2
SSL
Port Security
Supports up to 64 MAC addresses per port
Duplicate address detection
AAA
802.1X Authentication
Supports local/RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
IPv6 RADIUS Server
Support MD5 authentication
OAM
Cable Diagnostics
Factory Reset
MIB/RFC Standards
RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 SNTP
RFC 1542 BootP/DHCP Client
RFC 1901 SNMP v1, v2, v3
RFC 1907 SNMP v2 MIB
RFC 1908 SNMP v1, v2, v3
RFC 2131 BootP/DHCP Client
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Authentication
RFC 2233 Interface Group MIB
RFC-2246 SSL
RFC 2475
RFC 2570 SNMP v1, v2, v3
RFC 2575 SNMP v1, v2, v3
RFC 2598 CoS
RFC 2618 RADIUS Authentication
RFC 2819 RMON v1
RFC 2865 RADIUS Authentication
RFC 3164 System Log
RFC 3195 System Log
RFC 3411-17 SNMP
D-Link Private MIB
LLDP MIB
Zone Defense MIB
2233 Interface Group MIB
Management
Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
SNMP Trap
Backup/Upgrade firmware
Smart Wizard
Upload/Download Configuration file
System Log
BootP/DHCP Client
SNTP
ICMP v6
IPv4/v6 Dual Stack
