| Phantom 4 Pro V2.0 |
| |
| |

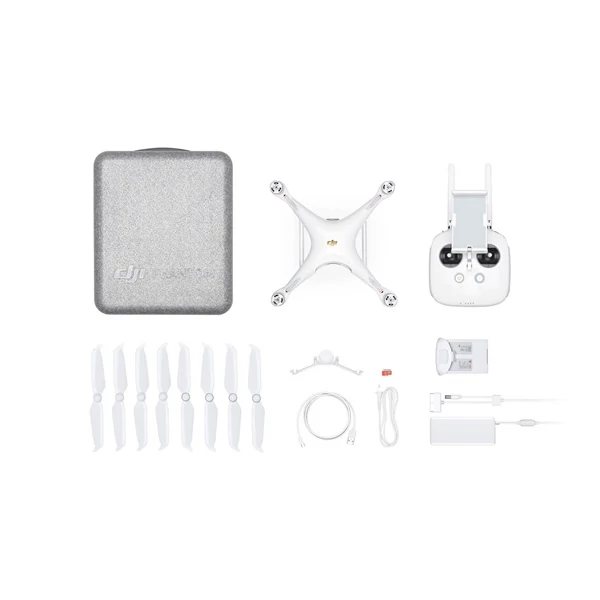

| In the Box |
| |
- Aircraft × 1
-
Standard RC × 1
-
Intelligent Flight Battery × 1
-
Charger × 1
-
Power Cable × 1
-
Propellers (pair) × 4
-
Gimbal Clamp × 1
-
microSD Card (32GB) × 1
-
Micro USB Cable × 1
-
Carrying Case × 1
.
|
| |
| |
| Specs |
| |
| Aircraft |
| |
- Weight (Battery & Propellers Included): 1375 g
-
Diagonal Size (Propellers Excluded): 350 mm
-
Max Ascent Speed:
S-mode: 6 m/s
P-mode: 5 m/s
-
Max Descent Speed:
S-mode: 4 m/s
P-mode: 3 m/s
-
Max Speed:
S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
-
Max Tilt Angle:
S-mode: 42°
A-mode: 35°
P-mode: 25°
-
Max Angular Speed:
S-mode: 250°/s
A-mode: 150°/s
-
Max Service Ceiling Above Sea Level: 19685 ft (6000 m)
-
Max Wind Speed Resistance: 10 m/s
-
Max Flight Time: Approx. 30 minutes
-
Operating Temperature Range: 32° to 104°F (0° to 40°C)
-
Satellite Positioning Systems: GPS/GLONASS
-
Hover Accuracy Range:
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
.
|
| |
| |
| Gimbal |
| |
- Stabilization: 3-axis (pitch, roll, yaw)
-
Controllable Range: Pitch: -90° to +30°
-
Max Controllable Angular Speed: Pitch: 90°/s
-
Angular Vibration Range: ±0.02°
.
|
| |
| |
| Vision System |
| |
- Vision System:
Forward Vision System
Backward Vision System
Downward Vision System
-
Velocity Range: ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
-
Altitude Range: 0-33 ft (0-10 m)
-
Operating Range: 0-33 ft (0-10 m)
-
Obstacle Sensory Range: 2-98 ft (0.7-30 m)
-
FOV:
Forward: 60° (Horizontal), ±27° (Vertical)
Backward: 60° (Horizontal), ±27° (Vertical)
Downward: 70° (Front and Rear), 50° (Left and Right)
-
Measuring Frequency:
Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
-
Operating Environment: Surface with clear pattern and adequate lighting (lux>15)
.
|
| |
| |
| Infrared Sensing System |
| |
- Obstacle Sensory Range: 0.6-23 feet (0.2-7 m)
-
FOV: 70° (Horizontal), ±10° (Vertical)
-
Measuring Frequency: 10 Hz
-
Operating Environment: Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
.
|
| |
| |
| Camera |
| |
- Sensor:
1-inch CMOS
Effective pixels: 20M
-
Lens: FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8-f/11 auto focus at 1 m-∞
-
ISO Range:
Video:
100-3200 (Auto)
100-6400 (Manual)
Photo:
100-3200 (Auto)
100-12800 (Manual)
-
Mechanical Shutter Speed: 8-1/2000 s
-
Electronic Shutter Speed: 8-1/8000 s
-
Image Size:
3:2 Aspect Ratio: 5472×3648
4:3 Aspect Ratio: 4864×3648
16:9 Aspect Ratio: 5472×3078
-
PIV Image Size:
4096×2160 (4096×2160 24/25/30/48/50p)
3840×2160 (3840×2160 24/25/30/48/50/60p)
2720×1530 (2720×1530 24/25/30/48/50/60p)
1920×1080 (1920×1080 24/25/30/48/50/60/120p)
1280×720 (1280×720 24/25/30/48/50/60/120p)
-
Still Photography Modes:
Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
-
Video Recording Modes:
H.265
C4K: 4096×2160 24/25/30p @100Mbps
4K: 3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K: 2720×1530 48/50/60p @80Mbps
FHD: 1920×1080 24/25/30p @50Mbps
FHD: 1920×1080 48/50/60p @65Mbps
FHD: 1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD: 1280×720 48/50/60p @35Mbps
HD: 1280×720 120p @60Mbps
H.264
C4K: 4096×2160 24/25/30/48/50/60p @100Mbps
4K: 3840×2160 24/25/30/48/50/60p @100Mbps
2.7K: 2720×1530 24/25/30p @80Mbps
2.7K: 2720×1530 48/50/60p @100Mbps
FHD: 1920×1080 24/25/30p @60Mbps
FHD: 1920×1080 48/50/60 @80Mbps
FHD: 1920×1080 120p @100Mbps
HD: 1280×720 24/25/30p @30Mbps
HD: 1280×720 48/50/60p @45Mbps
HD: 1280×720 120p @80Mbps
-
Max Video Bitrate: 100 Mbps
-
Supported File Systems: FAT32 (≤32 GB); exFAT (>32 GB)
-
Photo: JPEG, DNG (RAW), JPEG + DNG
-
Video: MP4/MOV (AVC/H.264; HEVC/H.265)
-
Supported SD Cards:
microSD
Max Capacity: 128 GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
-
Operating Temperature Range: 32° to 104°F (0° to 40°C)
.
|
| |
| |
| Remote Controller |
| |
- Operating Frequency: 2.400-2.483 GHz and 5.725-5.850 GHz
-
Max Transmission Distance:
2.400-2.483 GHz, 5.725-5.850 GHz (Unobstructed, free of interference)
FCC: 10000 m
CE: 6000 m
SRRC: 6000 m
MIC: 6000 m
-
Operating Temperature Range: 32° to 104°F (0° to 40°C)
-
Battery: 6000 mAh LiPo 2S
-
Transmitter Power (EIRP):
2.400-2.483 GHz
FCC: 26 dBm
CE: 20 dBm
SRRC: 20 dBm
MIC: 17 dBm
5.725-5.850 GHz
FCC: 26 dBm
CE: 14 dBm
SRRC: 20 dBm
MIC: -
-
Operating Current/Voltage: 1.2 A@7.4 V
-
Video Output Port:
GL300K: HDMI
GL300L: USB
-
Mobile Device Holder:
GL300K: Built-in display device (5.5-inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM+16 GB ROM)
GL300L: Tablets and smart phones
.
|
| |
| |
| Charger |
| |
- Voltage: 17.4 V
-
Rated Power: 100 W
.
|
| |
| |
| Intelligent Flight Battery |
| |
- Capacity: 5870 mAh
-
Voltage: 15.2 V
-
Battery Type: LiPo 4S
-
Energy: 89.2 Wh
-
Net Weight: 468 g
-
Charging Temperature Range: 41° to 104°F (5° to 40°C)
-
Max Charging Power: 160 W
.
|
| |
| |
| App / Live View |
| |
- Mobile App: DJI GO 4
-
Live View Working Frequency: 2.4 GHz ISM, 5.8 GHz ISM
-
Live View Quality: 720P @ 30fps, 1080P @ 30fps
-
Latency:
Phantom 4 Pro V2.0: 220 ms (depending on conditions and mobile device)
Phantom 4 Pro+ V2.0: 160-180 ms
.
|
| |
| |
