| BAR 500 |

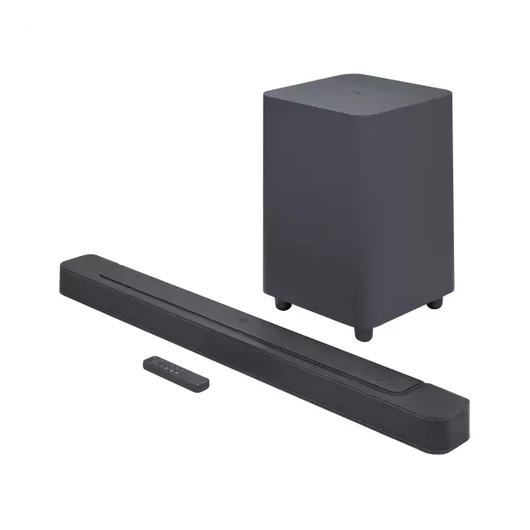

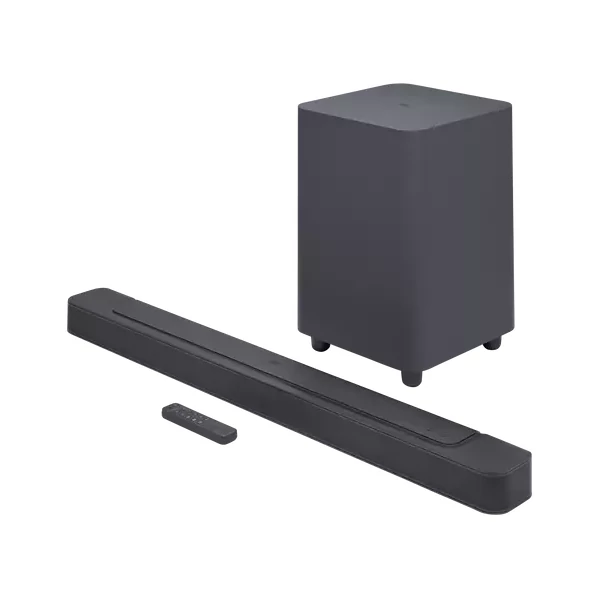

| 5.1 soundbar with MultiBeam™ and Dolby Atmos® |
| Spec |
| Specifications | |
| Power supply
|
100-240 V AC, ~ 50/60 Hz
|
| Network power consumption in standby mode
|
< 2.0W
|
| Operating temperature
|
0 °C-45 °C
|
| Audio specifications | |
| Total speaker output power (max at THD (total harmonic distortion) 1%)
|
590 W
|
| Soundbar output power (max at THD (total harmonic distortion) 1%)
|
290 W
|
| Subwoofer output power (max at THD (total harmonic distortion) 1%)
|
300 W
|
| Soundbar transducer
|
4x (46x90)mm racetrack units, 3x 0.75" (20mm) tweeters
|
| Subwoofer transducer
|
10" (260mm)
|
| Frequency range
|
35 Hz - 20 kHz (-6 dB)
|
| Audio inputs |
1 optical, Bluetooth, USB (USB playback is only available in the US version. In other versions, USB is for service use only.)
|
| Dimensions | |
| Soundbar Dimensions (W x H x D)
|
1017 x 56 x 103.5 mm
|
| Subwoofer dimensions (W x H x D)
|
305 x 440.4 x 305 mm
|
| Soundbar weight
|
2.8 kg
|
| The weight of the subwoofer
|
10 kg
|
| Package dimensions (W x H x D)
|
1105 x 370 x 475 mm
|
| Package weight
|
16.2 kg
|
| Specifications, control and connection | |
| USB port
|
Type A
|
| USB power data
|
5V DC, 0.5A
|
| Supported file formats
|
MP3
|
| MP3 codec
|
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
|
| MP3 sample rate
|
16 - 48 kHz
|
| MP3 bit rate
|
80-320 Kpbs
|
| Bluetooth version
|
5.0
|
| Bluetooth profile
|
A2DP 1.2, AVRCP 1.5
|
| Frequency range for Bluetooth transmitter
|
2400 MHz-2483.5 MHz
|
| Bluetooth transmitter power
|
<15dBm (EIRP)
|
| Wi-fi network
|
IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz/5 GHz)
|
| 2.4G wi-fi transmitter frequency range |
2412-2472 MHz (2.4 GHz ISM band, US 11 channels, Europe and elsewhere 13 channels)
|
| 2.4G wi-fi transmitter power
|
<20dBm (EIRP)
|
| 5G wi-fi transmitter frequency range
|
5.15-5.35 GHz, 5.470-5.725 GHz, 5.725-5.825 GHz
|
| 5G wi-fi transmitter power |
5.15-5.25 GHz <23 dBm, 5.25-5.35 GHz and 5.47-5.725 GHz <20 dBm, 5.725-5.825 GHz <14 dBm (EIRP)
|
| 2.4G wireless transmitter frequency range
|
2406 - 2474 MH
|
| 2.4G wireless transmitter power
|
<10 dBm (EIRP)
|
| Video specifications | |
| HDMI video input
|
1
|
| HDMI video output (with Enhanced Audio Return Channel, eARC)
|
1
|
| HDMI HDCP version
|
2.3
|
| HDR review
|
HDR10, Dolby Vision
|
