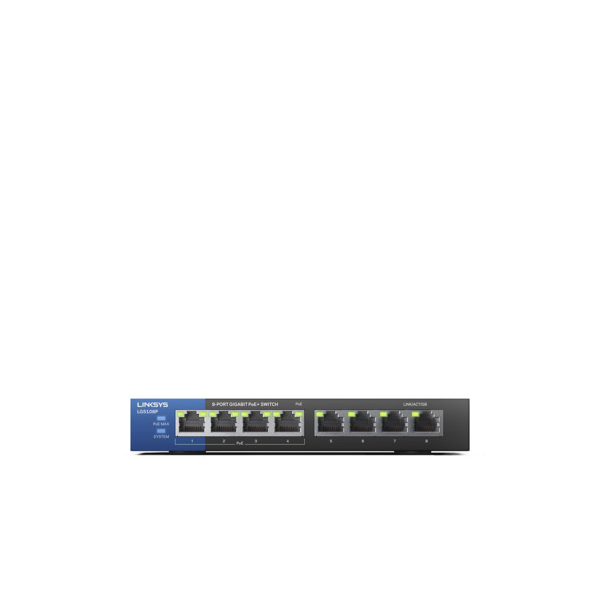

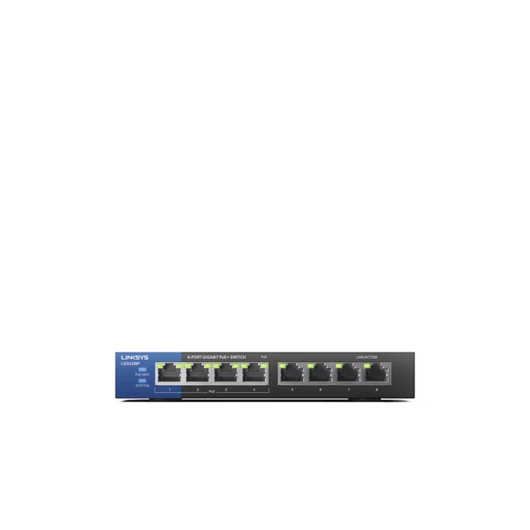

| Linksys LGS108P 8-Port Business Desktop Gigabit PoE+ Switch |
| SKU LGS108P-EU |
|
TECHNICAL SPECS
|
| Model Name:
|
LGS108P
|
| Network Standards: | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3ab | |
| IEEE 802.3az | |
| IEEE 802.3af | |
| .
|
IEEE 802.3at (PoE+)
|
| Ports: |
8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W
|
| LEDs:
|
Link, speed, activity, and PoE indicators
|
| Performance: | Full line rate and forwarding rate of 64B frame at: |
| • 1.488 Mpps for 1000M port | |
| • 0.1488 Mpps for 100M port | |
| .
|
• 0.01488 Mpps for 10M port
|
| Maximum Power Consumption:
|
1.71 W / 5.08 W
|
| MAC Address Table Size:
|
8,000 entries
|
| Bandwidth:
|
16 Gbps (non-blocking)
|
| Fans:
|
None
|
| Minimum System Requirements:
|
Connected devices need Ethernet connectivity and Ethernet cables
|
| Dimensions (LxWxH):
|
210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
|
| Weight:
|
0.50 kg (1.10 lbs)
|
| Power:
|
54 VDC, 1.2 A
|
|
Power Consumption:
|
3.83 W / 7.0 W
|
| Power Consumption:
|
3.83 W / 7.0 W
|
| Power Saving:
|
Cable connected detection, sleep mode
|
| 2 Monitors:
|
External
|
| Operating Temperature:
|
0–50°C (32–122°F)
|
| Storage Temperature:
|
-40–70°C (-40–158°F)
|
| Operating Humidity:
|
10–90% (non-condensing)
|
| Storage Humidity:
|
10–90% (non-condensing)
|
| Mounting:
|
Wall
|
| Quality Of Service:
|
802.1p and DSCP
|
| Regulatory Compliance:
|
FCC Class A, CE
|
| Warranty and Support:
|
5 Year Warranty
|
