Leírás és Paraméterek
- Model Name:

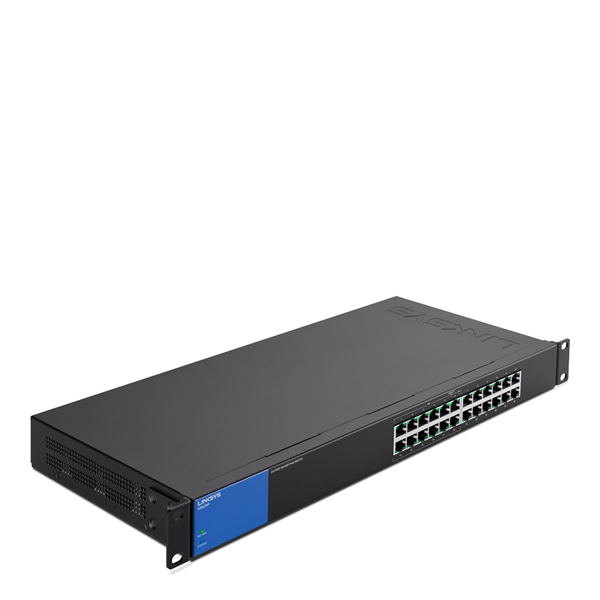

LGS124P - Network Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3af
- 802.3at (PoE+)
- Ports:
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W - LEDs:
Link, speed, activity, and PoE indicators - Performance:
- Full line rate and forwarding rate of 64B frame at:
- 1.488 Mpps for 1000M port
- 0.1488 Mpps for 100M port
- 0.01488 Mpps for 10M port
- Maximum Power Consumption:
8.69 W / 19.27 W - MAC Address Table Size:
8,000 entries - Bandwidth:
48 Gbps (non-blocking) - Fans:
One - Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables. - Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.) - Weight:
2.758 kg (6.08 lbs) - Power Consumption:
7.79 W / 17.65 W
- Power Consumption:
7.79 W / 17.65 W - Power Input:
100–240 VAC, 50/60 Hz - Power Saving:
Cable connected detection, sleep mode - 2 Monitors:
Internal - Operating Temperature:
0–50°C (32–122°F) - Storage Temperature:
-40–70°C (-40–158°F) - Operating Humidity:
10–90% (non-condensing) - Storage Humidity:
10–90% (non-condensing) - Mounting:
Rack - Quality Of Service:
802.1p and DSCP - Regulatory Compliance:
FCC Class A, CE, UL, CB - Warranty and Support:
5 Year Warranty
