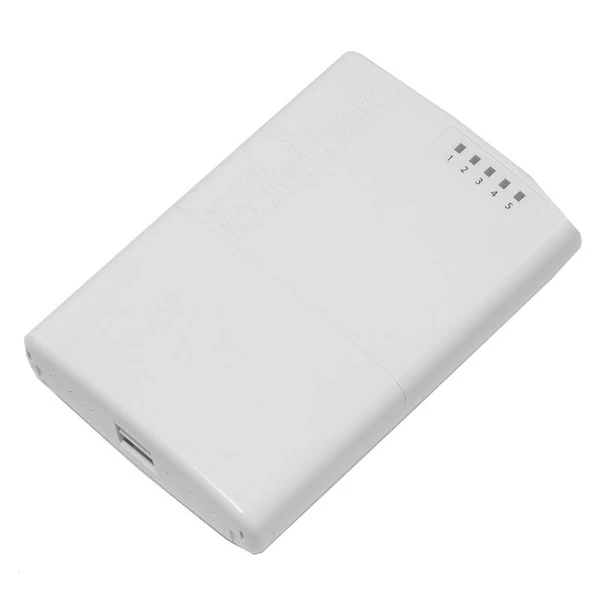

The PowerBox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.

Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!

Specifications

Details
Product code	RB750P-PBr2
Architecture	MIPSBE
CPU	QCA9533
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	125x178x48mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	8-30 V
Max power consumption	50 W
Max power consumption without attachments	2 W
FAN count	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

PoE-out

Details
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max total out (A)	2 A

Ethernet

Details
10/100 Ethernet ports	5

Other

Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Included parts
