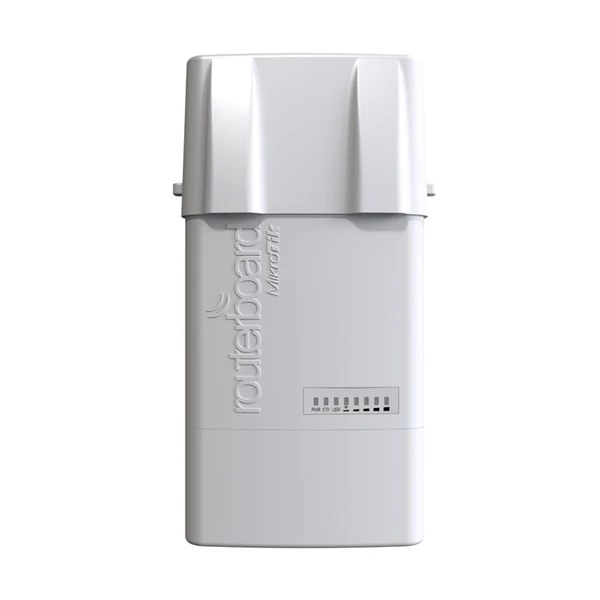

The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Specifications

Details
Product code	RB912UAG-2HPnD-OUT
Architecture	MIPSBE
CPU	AR9342
CPU core count	1
CPU nominal frequency	600 MHz
License level	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	64 MB
Storage type	NAND
Tested ambient temperature	-40C to +70C

Powering

Details
Max Power consumption	10W
PoE in	Passive PoE
PoE in input Voltage	8-30 V
Number of DC inputs	1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Wireless 2.4 GHz chip model	AR9342

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	30	-100
11MBit/s	30	-94
6MBit/s	30	-96
54MBit/s	27	-78
MCS0	30	-96
MCS7	24	-73

Included parts
