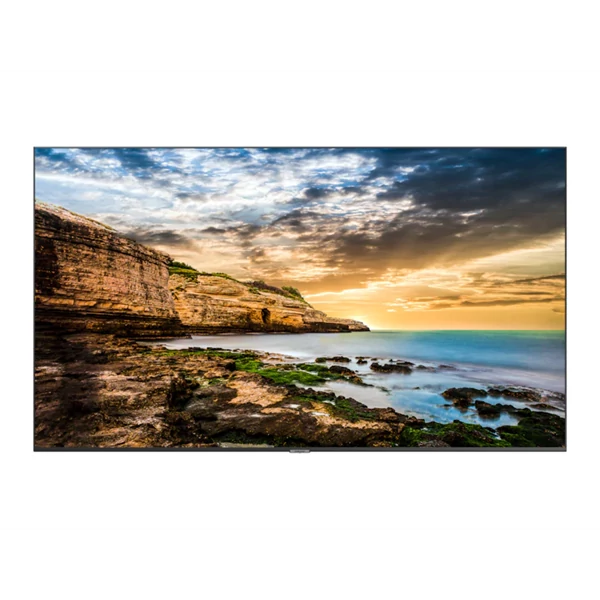

| Samsung SMART Signage QET series |
| |
| |
| Model: QE75T |
| |
| Panel |
| |
- Diagonal Size
→ Class: 75"
→ Measured: 74.5"
-
Type: Direct LED BLU
-
Resolution: UHD (3840 x 2160)
-
Pixel Pitch (mm): 0.4296 x 0.4296
-
Active Display Area: 1650.24 (H) x 928.26 (V)
-
Brightness(Typ.): 300
-
Contrast Ratio (Typ.): 1200:1
-
Viewing Angle(H/V): 178/178
-
Response Time (G to G): 8ms(Typ.)
-
Display Colors: 16.7M(True Display)
-
Color Gamut: (NTSC) 72%
-
Operation Hour: 16/7
-
Haze: 2%
.
|
| |
| |
| Display |
| |
- Dynamic C/R: MEGA
-
H-Scanning Frequency: 30 ~ 81kHZ
-
V-Scanning Frequency: 48 ~ 75HZ
-
Maximum Pixel Frequency: 594MHz
.
|
| |
| |
| Sound |
| |
- Speaker Type: Built in Speaker(10W + 10W)
.
|
| |
| |
| Connectivity |
| |
- INPUT
→ RGB: -
→ VIDEO: HDMI 2.0 (2)
→ HDCP: HDCP 2.2
→ AUDIO: Stereo Mini Jack, HDMI/ Audio(Common)
→ USB: USB 2.0 x 1
-
OUTPUT
→ RGB: N/A
→ VIDEO: N/A
→ AUDIO: Stereo Mini Jack
→ Power Out: N/A
→ USB: N/A
-
EXTERNAL CONTROL: RS232C(in) thru stereo jack, RJ45
-
EXTERNAL SENSOR: N/A
-
Tuner: N/A
.
|
| |
| |
| Power |
| |
- Type: Internal
-
Power Supply: AC 100 - 240 V, 50/60 Hz
-
Power Consumption
→ Max[W/h]: 253
→ Typical[W/h]: 171
→ Rating[W/h]: 230
→ BTU(Max): 862.7
→ Sleep mode: 0.5
→ Off mode: N/A
.
|
| |
| |
| Mechanical Spec |
| |
- Dimension(mm)
→ Set: 1673.2 x 958.2 x 59.9
→ Package: 1840 x 1118 x 198
-
Weight (kg)
→ Set: 30.9
→ Package: 41.5
-
VESA Mount: 400 X 400
-
Protection Glass: N/A
-
Stand Type: No
-
Bezel Width (Top/Side/Bot) (mm): 3 Bezel-less
.
|
| |
| |
| Operation |
| |
- Operating Temperature: 0 ~ 40 °C
-
Humidity: 10~80%
.
|
| |
| |
| Feature |
| |
- Key: UHD Signage with Built-in MagicInfo Lite
-
Orientation: Landscape
-
Special
→ H/W: Temperature Sensor,Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating
→ S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
-
Internal Player (Embedded H/W)
→ Processor: Cortex A72 1.7GHz Quad-Core CPU
→ On-Chip Cache Memory: L1 Instruction Cache : 48KB / L1 Data Cache : 32KB / L2 Cache : 2MB
→ Clock Speed: 1.7GHz
→ Main Memory Interface: 2.0GB, LPDDR4 1.5GHz 64bit
→ Graphics: Graphic resolution : 1920x1080, Output resolution : 3840x2160 (Scale up from graphic processing result.)
→ Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
→ Multimedia: * Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
→ IO Ports: USB 2.0
→ Operating System: Tizen 4.0 (VDLinux)
.
|
| |
| |
| Certification |
| |
- Safety: 60950-1
-
EMC: Class B
-
Environment: N/A
-
Security: -
.
|
| |
| |
| Accessories |
| |
- Included: Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
-
Optional
→ Stand: N/A
→ Mount: WMN4277SE (Land Only)
→ Specialty: CML450K
→ Media Player: N/A
.
|
| |
