Connector(s)
Input Connector(s)
4 - HDMI
1 - USB Micro-B (5 pin) (Power)
Output Connectors
1 - HDMI
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Humidity
5~90% RH (non-condensing)
Hardware
AV Input
HDMI
Ports
4
AV Output
HDMI
Audio
Yes
Indicators
LED Indicators
1 - Power
4 - Port Selection
1 - Automatic Switching Indicator
1 - IR Mode Indicator
Packaging Information
Package Length
7.0 in [17.9 cm]
Package Width
4.8 in [12.3 cm]
Package Height
2.0 in [5.0 cm]
Shipping (Package) Weight
14.8 oz [420.0 g]
Package Quantity
1
Performance
Maximum Cable Distance To Display
16.4 ft [5 m]
Supported Resolutions
8K 60Hz
4K 144Hz
4K 120Hz
4K 60Hz
5120x1440
3440x1440
2560x1440
2560x1080
1920x1200
1920x1080
Other lower resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Physical Characteristics
Color
Black
Product Length
5.4 in [13.6 cm]
Product Width
2.4 in [6.1 cm]
Product Height
0.6 in [1.4 cm]
Weight of Product
5.3 oz [150.0 g]
Material
Metal
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.3A
Output Voltage
5V DC
Output Current
1A
Power Consumption (In Watts)
5W
Software
OS Compatibility
No Drivers or Software required
Special Notes / Requirements
Note
HDMI 2.1a cables are required for full functionality
What's in the Box
Included in Package

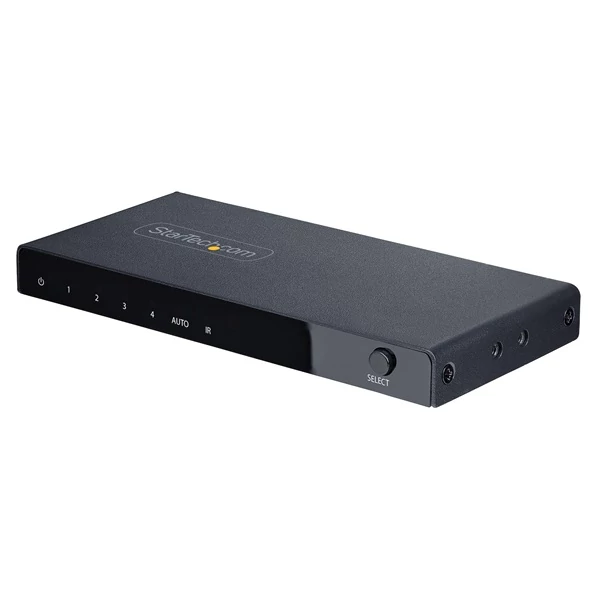

1 - HDMI Video Switch
1 - Remote Control (Batteries Not Included)
1 - Mounting Kit
1 - USB Wall Charger
1 - USB Micro-B Power Cable
4 - Rubber Feet
1 - Quick-Start Guide
